Quick answer
Hot tub and pool wiring in Oklahoma City means a dedicated 240-volt circuit for the spa, usually 50 or 60 amps, through a GFCI-protected disconnect placed within sight of the tub but at the required distance from the water, plus circuits for pool pumps, heaters and lights, and equipotential bonding that ties metal parts and the water together. We size it to the equipment, file the permit and have it inspected before the tub is filled.
Why spas and pools have their own code rules
What hot tub and pool wiring involves
A hot tub arriving on a pad is the start of the electrical job, not the end of it. Most full-size spas need a hardwired 240-volt circuit from the panel, a GFCI disconnect outdoors at the right distance from the tub, and bonding of the metal parts around it. Pools add pump, heater, chlorinator and light circuits, each with its own protection and placement rules, and a bonding grid that equalizes voltage across the deck, the water and every metal part near it.
We start from the equipment specifications, not a guess: the spa nameplate sets the circuit size, the pool equipment list sets the circuits at the pad. Then we plan the route from the panel, the disconnect location and the bonding before the concrete is poured or the tub is set, because bonding especially is far easier done early than retrofitted.
What moves the price
What sets the price of spa and pool wiring
- Distance from the panel Longer runs to the tub or pad cost more.
- Circuit size A 60 amp spa circuit uses heavier wire than a 40 amp one.
- Panel space A full panel may need a subpanel.
- Pool equipment count Pumps, heaters, lights and automation each need circuits.
- Bonding New pours are easier than retrofits.
- Trenching Runs across a yard need a trench or bore.
- Permit and inspection Required before the tub is filled.
2026 cost guides put a hot tub or spa circuit with a GFCI disconnect at about $800 to $2,500. A national planning range, not our price.
What is included
What a spa or pool install includes
- Circuit sized to the spa or equipment nameplate
- GFCI disconnect within sight of the tub, at code distance
- Conduit from the panel to the disconnect or pad
- Pool equipment circuits labeled at the panel
- Equipotential bonding of metal parts and water
- Inspection before the tub is filled
- GFCI trip test on every circuit
Sub-jobs this page covers
Spa disconnects, pool equipment and bonding
Spa GFCI disconnect

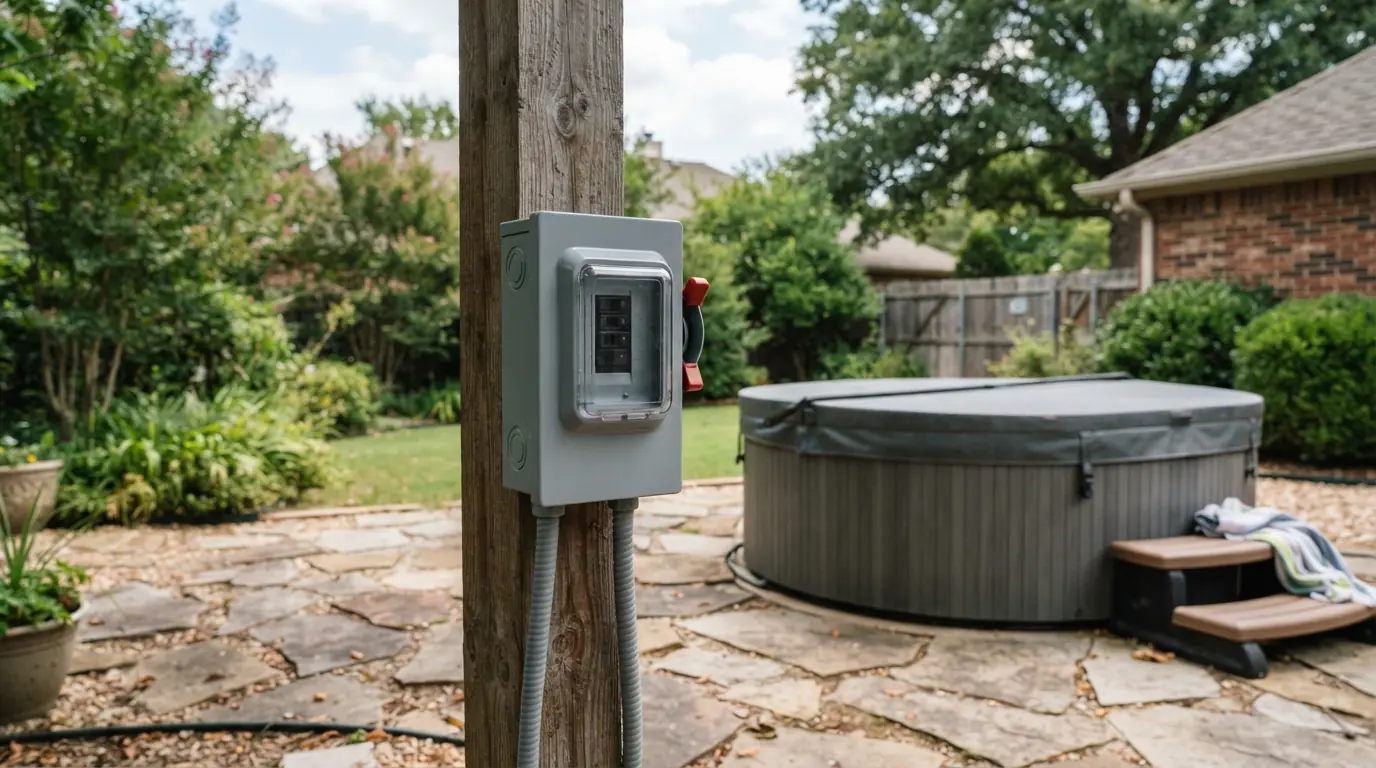

Most hardwired spas need a 50 or 60 amp, 240-volt circuit through a GFCI disconnect. The disconnect must be within sight of the tub and at least the code-required distance from the water, so it can be switched off in an emergency without anyone reaching over the tub. We run the feed from the panel in conduit, set the disconnect on a post or wall, and connect the tub to the manufacturer specification. Smaller plug-in spas still need a dedicated GFCI-protected receptacle placed correctly.
Pool pump and light circuits

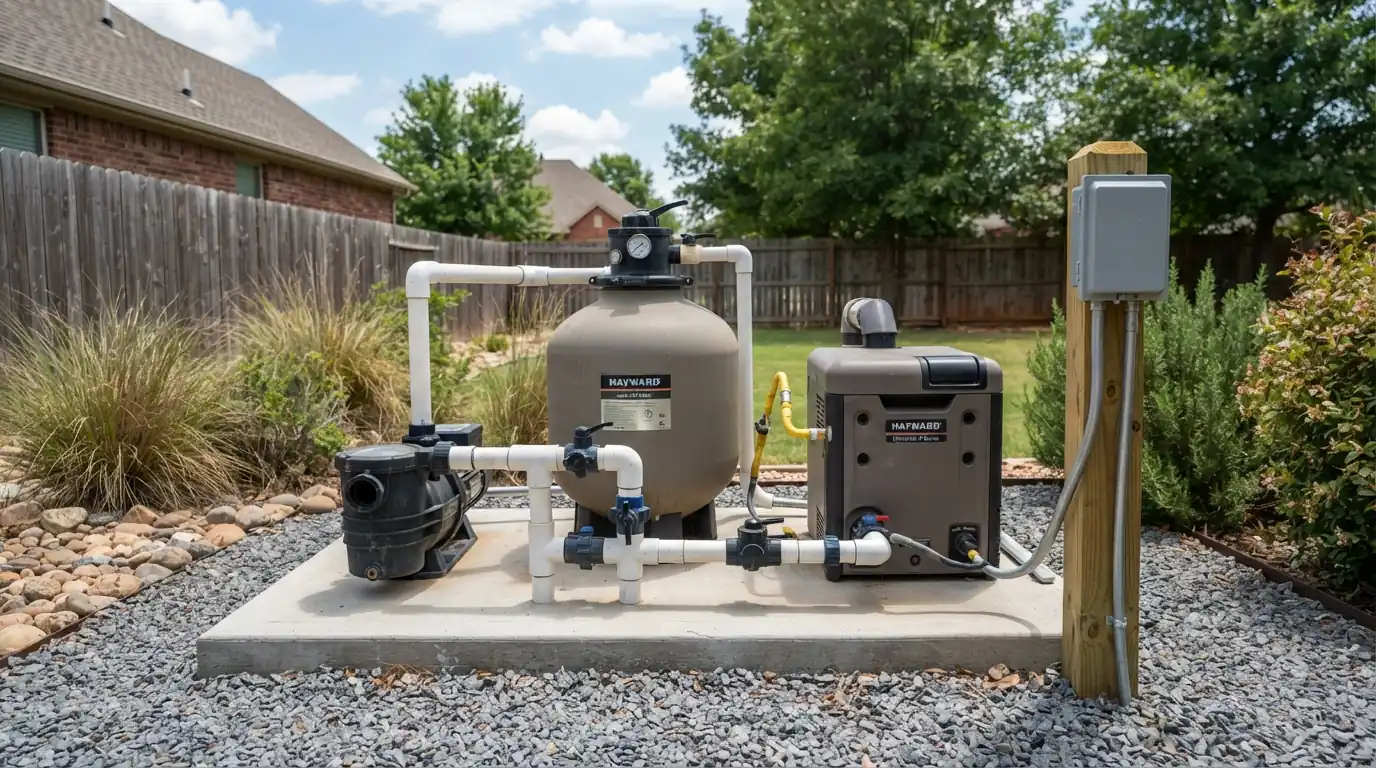

Pool equipment pads carry pumps, heaters, chlorinators, automation and lighting, each with its own circuit and protection. Pool lights have particular rules on voltage, transformer location and GFCI protection, and receptacles near the pool must meet placement and protection requirements. We wire the pad from a subpanel or the house panel, label every breaker, and test GFCI protection on each circuit before the equipment is commissioned. Automation systems and variable-speed pumps get their own attention, since their controls and wiring differ from older single-speed equipment and are easy to connect incorrectly.
Equipotential bonding
Bonding ties together the metal parts around a pool or spa, including the pump motors, ladders, handrails, metal fencing within reach and the steel in the deck, and connects the water itself, so there is no voltage difference for a swimmer to bridge. It is separate from grounding and it is the part most often missing on older installs. We install the bonding conductor before concrete is poured on new work and retrofit it where possible on existing pools, then have it inspected.
Oklahoma City conditions
Lightning, bonding and outdoor water in Oklahoma City
Oklahoma sits in one of the most active spring lightning regions in the country, and the Oklahoma Climatological Survey maps the strike density across the state every March to May. Outdoor water, metal ladders and pump motors are exactly where proper bonding and GFCI protection matter most when storms roll through. We treat bonding as part of every spa and pool job here, and we recommend staying out of the water whenever thunder can be heard.
DIY or call
Why plug-in shortcuts are a bad idea near water
| Shortcut | Safe? | Why not |
|---|---|---|
| Extension cord to a plug-in spa | No | Cords outdoors near water, no GFCI guarantee |
| Spa on a shared circuit | No | Undersized and unprotected |
| Skipping the bonding | No | Voltage differences a swimmer can feel |
| Disconnect mounted on the tub side | No | Reach over the water to switch it off |
| Permitted spa circuit with GFCI disconnect | Yes | The safe standard |
Step by step
From the equipment spec to the first fill
- Read the equipment specs
Spa nameplate and pool equipment list.
- Plan route, disconnect and bonding
Before the pad is poured or the tub is set.
- Run and protect circuits
Dedicated circuits, GFCI disconnect, pad wiring.
- Bond and inspect
Bonding conductor installed and inspected.
- Test before filling
GFCI trips tested, equipment powered with you.
Questions we get about this job
Hot tub and pool wiring questions
Most hardwired spas need 50 or 60 amps at 240 volts. The nameplate sets the exact size.
Within sight of the tub and at least the code-required distance from the water.
Only small plug-in spas rated for it, on a dedicated GFCI-protected receptacle.
Connecting metal parts and the water so there is no voltage difference for a swimmer to bridge.
Yes. It is permitted and inspected before use.
Often, at least partly. We assess what can be reached without breaking the deck.
No. Stay out of pools and spas whenever thunder can be heard.
