Updated October 2026
Quick answer
Well pump electrical repair around Oklahoma City starts with testing the supply: the breaker, the pressure switch contacts, the control box on three-wire pumps and the voltage at the wellhead. Many no-water calls trace to a burned pressure switch, a failed start capacitor or relay in the control box, or a tripped or failing breaker. We fix the electrical fault, and when the pump itself has failed, we tell you before anyone pulls it.
Warning signs
Signs the fault is electrical
- No water and the breaker is trippedA short, a failing breaker or a pump fault.
- Pump hums but does not startControl box capacitor or relay.
- Pressure switch will not click onBurned contacts or a clogged tube.
- Pump runs constantlySwitch stuck closed or a leak.
- Rapid on-off cyclingTank or switch problem.
- Burning smell at the switchSwitch off the breaker and call.
- Low pressure at every tapSwitch settings or pump output.
Step by step
From no water to running taps
- Check the breaker and gauge
Tripped breaker and tank pressure first.
- Test the pressure switch
Contacts, settings and supply.
- Test the control box
Capacitor and relay on three-wire pumps.
- Test the circuit and wellhead
Voltage and pump current under load.
- Repair or refer
Electrical fault fixed, or pump failure confirmed for the well contractor.
Electrical faults that look like a dead pump
What well pump electrical repair covers

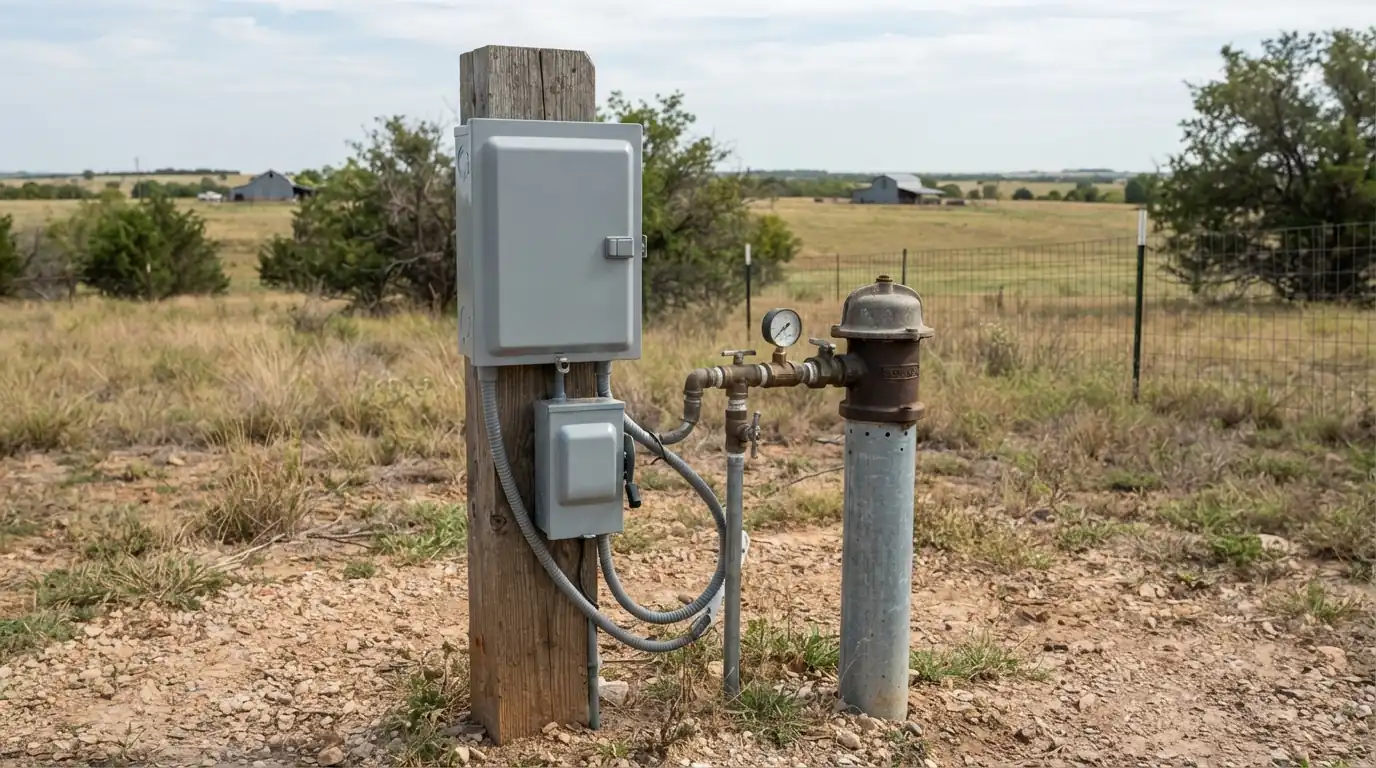

A submersible well pump sits hundreds of feet down, but most of what controls it is above ground: the breaker in the panel, a pressure switch on the tank that turns the pump on and off, and on many pumps a control box with a start capacitor and relay. Any of those can fail and leave the house without water while the pump itself is fine.
We test the chain from the panel outward. Voltage at the breaker, then at the pressure switch, then at the control box and the wellhead. The pressure switch contacts get checked for burning and pitting, the control box components for failure, and the pump circuit for current draw once it runs. Only when the electrical side checks out do we point to the pump, and at that point you know the repair is needed before the rig comes out.
Sub-jobs this page covers
No water, switches, control boxes and circuits
No water from the well
Start with the breaker: if it tripped, reset it once. If there is still no water, check whether the pressure gauge on the tank reads near zero. From there it takes testing. A pressure switch with burned contacts will not close even when pressure is low; a failed capacitor in the control box hums but will not start the pump; a broken wire at the wellhead stops everything. We find which one it is and repair it, usually the same visit.
Pressure switch and control box

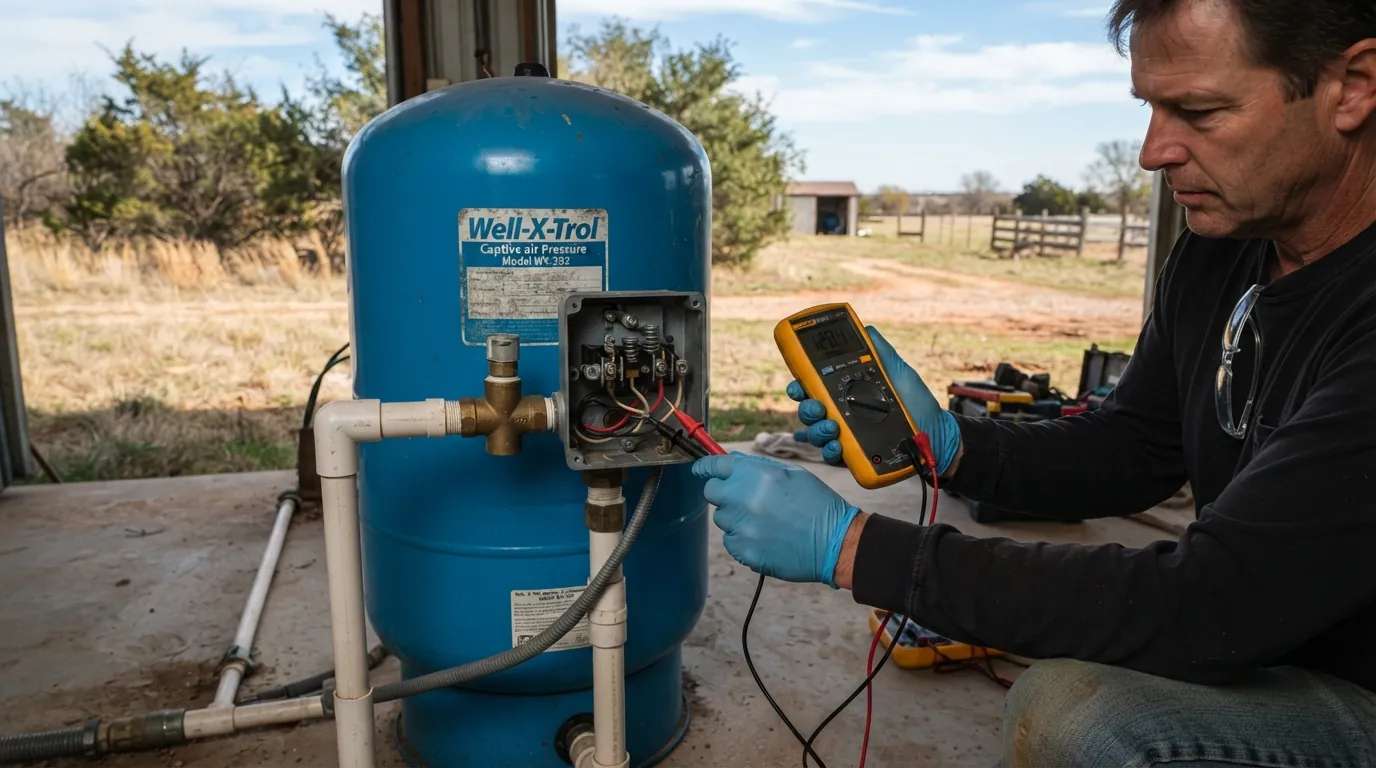

The pressure switch clicks the pump on at low pressure and off at high pressure, and its contacts wear from thousands of cycles. Burned or pitted contacts, a clogged pressure tube or a switch set wrong all cause trouble. The control box on three-wire pumps holds the start capacitor and relay that get the motor turning. Both are inexpensive parts, and replacing them is far cheaper than pulling a pump that was never the problem. We also check the pressure settings so the pump is not cycling harder than it needs to.
Well pump circuits and wiring
Well pump circuits are long, often buried, and run to equipment outdoors, so they suffer from damaged cable, corroded connections at the wellhead and breakers that have worn from years of motor starts. We test the circuit under load, measure the pump current against its rating, and repair the wiring or replace the breaker. Rapid cycling, where the pump turns on and off every few seconds, usually points to a waterlogged tank, which we flag for the well contractor with our readings.
Oklahoma City conditions
Private wells at the edges of the metro
Most homes inside Oklahoma City are on city water, but larger lots at the edges of the metro and out toward the surrounding towns often rely on private wells. A no-water call there is urgent, because the whole house depends on one pump and its controls. We come out to test the electrical side, and when the problem turns out to be the pump or the tank, we tell you plainly so the well contractor can be called without losing a day.
How long it takes
How long you may be without water
Most electrical faults on a well system, such as a pressure switch, a control box part or a breaker, are repaired on the first visit, so water is usually back the same day. Buried wiring faults can take longer to locate. If the pump itself has failed, the timeline depends on the well contractor, and we tell you that as soon as it is clear.
What moves the price
What sets the price of a well pump repair
- What failed A pressure switch or capacitor is far cheaper than a pump.
- Control box parts Capacitors and relays on three-wire pumps.
- Circuit condition Buried cable faults take longer to find and repair.
- Distance to the well Long runs from the panel to the wellhead.
- After-hours calls Night and weekend no-water calls cost more.
- Access Wellheads in tight or overgrown spots take longer.
- Pump replacement Handled with a well contractor if the pump failed.
Well pump electrical repairs are quoted after testing. National 2026 figures put residential service calls at about $79 to $179 and labor at $75 to $150 per hour.
Questions we get about this job
Well pump electrical questions
Often a pressure switch, control box part, breaker or wiring fault, not always the pump.
A failed start capacitor or relay in the control box is a common cause.
Usually a waterlogged pressure tank or a switch problem.
Yes, and set it to the right pressure range.
If the pump has failed, we confirm it and coordinate with a well contractor.
For a house on a well, yes. The line is answered 24/7.
Once. If it trips again, leave it off and call.
